Measuring Guide

All width sizes are actual gap or (opening) sizes and will be made as follows:

Single gate opening size 36" will be made -5" for hinges and sneck fittings

and double gate or drive gates will have 5.5" taken off

IMPORTANT NOTE WHEN ORDERING POSTS WITH GATES:-

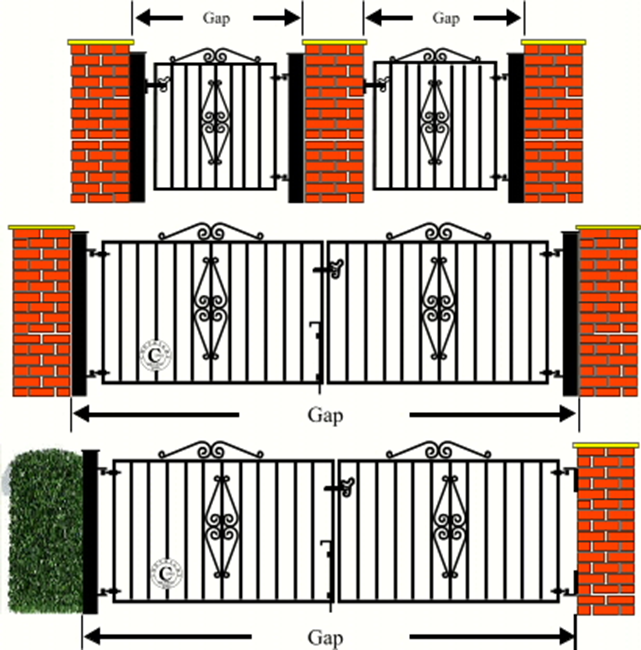

When ordering posts with gates please make sure you supply total size of the opening including posts even if you are ordering one post we still need the total opening gap that the gate and post will fit into see below

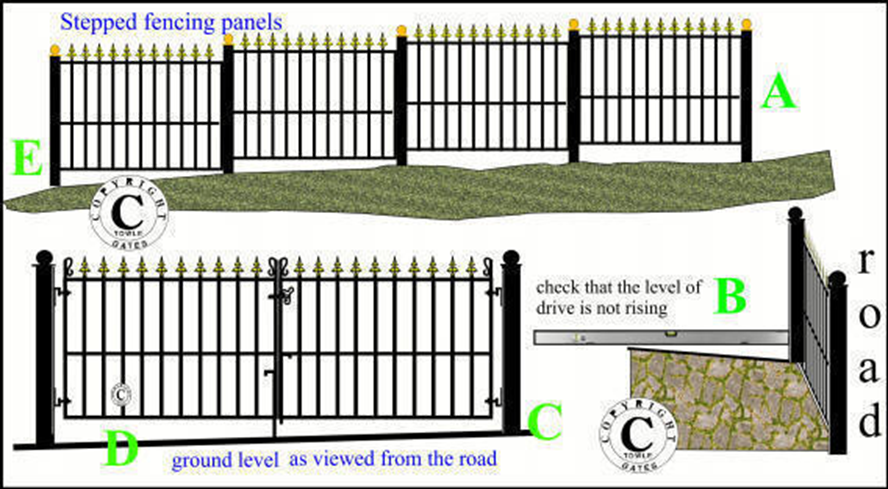

Fencing Measuring Guide

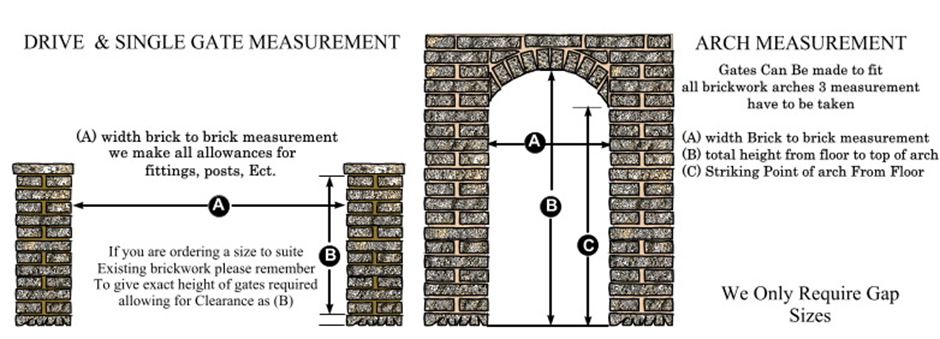

Drive and Single gate measurements

Arched Wall Panelling Guide

A small allowance (2mm) 1/8inch will be deducted from opening gap sizes to allow for easy installation between brickwork

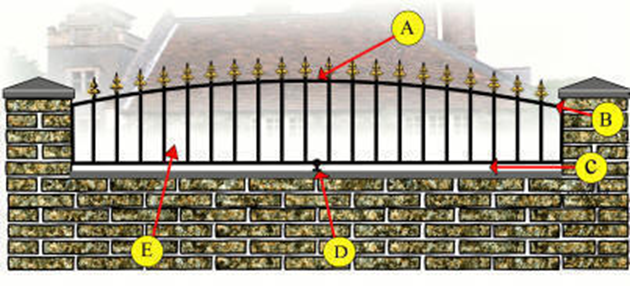

Top frame of panel (1/2")(12mm) down from the top of column brickwork or under copping stone (B), A gap of (1")(25mm) is to be left between panel bottom and wall copping or brickwork at the bottom of the frame this is to allow for maintenance of the wrought iron panel for future painting (C), The height or arch of the panel is between 5 and 6inches for point (A) to point (B) depending on width. The gap between infill bars will always be 100mm (4")(100mm) or less (E).(d) on the drawing is an adjustable foot for panel over (6ft-6") (2mtrs) wide

All wrought iron panels are drilled for screw wall fixing

Arched Wall

Please note: when ordering wall panels to fit walls & columns the panel fit as shown in the above diagram

 Fixing Instructions

Fixing Guide

All Wrought Iron Gates Come Complete With all necessary Fittings For Wall or Post Fixing

Gates arriving by mail order will be boxed up and the sneck on the gate will require unbolting, and re fixing in the correct position this is placed in an upright position for delivery purposes only. any separate hinges, adjustable eyelets, lock keeps, or fixings will arrive inside one of the cartons in a separate plastic bag
